Polycarbonate Pipes / Tube & Other Products

Polycarbonate Pipes and Tubes
Ask for Price

DUROTUFFTM Tube/ Baton is Especially meant for the use of Police, paramilitary, allied forces and other security/detective services. These are produced in Different sizes, in Diameter, Length, Thickness and colours in Bulk quantity. Because of lightweight, durable and quite handy these are the prime choice of the user as their guard protection. These are durable because of outstanding mechanical strength with
DUROTUFFTM shield is also meant for the use of Police, paramilitary, allied forces and other security/detective services to provide safety and excellent protection to the user. These are

> Yes! I am Interested

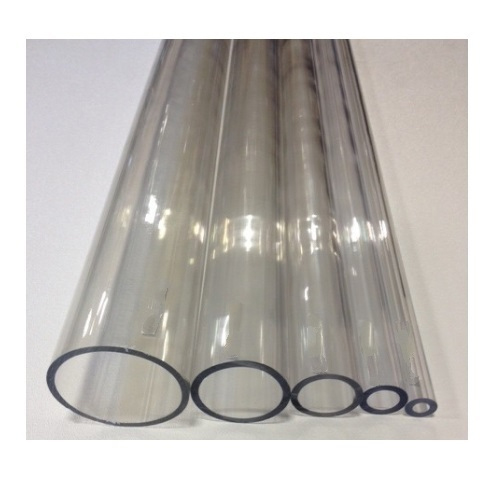

Polycarbonate Tubes / Pipes

Polycarbonate Tubes and Pipes
Ask for Price

DUROTUFFTM Polycarbonate Tube and Polycarbonate Pipes is made from high quality Solid polycarbonate material. DUROTUFFTM tube and pipe is light weight having excellent balance of clarity and toughness. With its high characteristics DUROTUFFTM tube/pipes are different quality and performance. These are made in different variety sizes and colours to meet out the requirement of the customers.

Because of its high strength, transparency, DUROTUFFTM Tube and Pipe is virtually unbreakable and chemical resistance, U.V. Resistance prevent transmission of Harmful Ultra Virus raises, uniform and smooth quality product are weather, water and fire resistant. Being secure/protective, Comfortable in use and with its excellent mechanical strength, besides the choice in other main fields it has become the prime choice of Industrialists also and these are now used in Laboratories, Chemical Plants, Boilers, solvent plants and allied industry.

DUROTUFFTM tubes/pipe are light in weight but strong and easy to handle and install. With their high quality performance, DUROTUFFTM polycarbonate tubes are scratch resistant and durable. Parts of above below mentioned are the main application areas of DUROTUFFTM tubes/ pipes:
Specifications
Physical Properties Value / Unit Standard
Density 1.2g/cc ASTM D792
Water Absorption 0.15% 24Hrs.@73F ASTM D 570
Water Absorption at Saturation 0.35% Equilibrium,73F ASTM D 570
Shrinkage 0.005-0.007 cm /cm Flow.0.125 inch. ASTM D 955
Melt Flow 7 g/10 min 300C/1.2kgf (o) ASTM D 1238


Mechanical Properties Value / Unit Standard
Hardness, Rockwell M. 70 ASTM D 785
Hardness, Rockwell R. 118 ASTM D 785
Tensile Strength @Break 65.5 Mpa Type 1, 2.0 in/ Min, ASTM D 638
Tensile Strength @Yield 62.1 Mpa Type 1, 2.0 in/ Min, ASTM D 638
Elongation at Break 110.00% Type 1, 2.0 in/ Min, ASTM D 638
Elongation at Yield 7.00% Type 1, 2.0 in/ Min, ASTM D 638
Flexural Modulus 2.34 Gpa 0.05 in/min, 2” span, ASTM D 790
Flexural Yield Strength 93.1 Mpa 0.05 in/min, 2” span, ASTM D 790
Fatigue Strength 6.89 Mpa Fatigue Limit, 2.5 MM Cycles, ASTM D 671
Izod Impact, Unnotched 32 J/cm 73F; ASTM D 4812
Tensile Impact Strength 546 kJ/m2 Type “S” ASTM D 1822
Falling Dart Impact 169J 73F, ASTM D 3029
Taber Abrasion, mg/1000 Cycles 10 CS-17, 1 kg; ASTM D 1044
Izod Impact, Notched 0.08 J/cm 73F; ASTM D 256


Electrical Properties Value / Unit Standard
Volume Resistivity Min 1e+017 ohm- cm ASTM D 257
Dielectric Constant 2.96 1 MHz. ASTM D 150
Dielectric Strength 15 kV/mm In ai, 125 mils, ASTM D 149
Dissipation Factor 0.009/0.01 60Hz, STM D 150/ 1 MHz; ASTM D 150
Comparative Tracking Index 250- 400 V (+/-0.125 inch), PLC Code 2 UL 746A
Hot Wire Ignition, HWI 7 – 15 sec (+/-0.125 inch), PLC Code 4, UL 746A
High Amp. Arc Ignition, HAI 60 – 120 arcs Surface (+/-0.125 inch) PLC Code 1, UL 746 A
High Voltage Arc-Tracking Rate HVTR 25.4–80mm/min (+/-0.125 inch), PLC Code 2; UL 746A


Thermal Properties Value / Unit Standard
CTE linear 68oF 68.4 um/ m-deg. C Flow-40F to 200F; ASTM E 831
Heat Capacity 1.26 J/g. deg. C ASTM C 351
Thermal Conductivity 0.19W/m-K ASTM C 177
Deflection Temperature at 0.46 Mpa (66 psi) 138 deg. C 0.250 inch, unannealed, ASTM D 648
Deflection Temperature at 1.8 Mpa (264 Psi) 132 deg. C 0.250 inch, unannealed, ASTM D 648
Vicat Softening Point 154 deg. C Rate B, ASTM D 1525
UL RTI, Electrical 130 deg. C UL 746B
UL RTI, Mechanical with Impact 130 deg. C UL 746B
UL RTI, Mechanical without impact 130 deg. C UL 746B
Flammability, UL 94 HB 0.029 in.


Thermal Properties Value / Unit Standard
Refractive Index 1.59 ASTM D 542
Haze 1.00% 0.100 inch, ASTM D 1003
Transmission, Visible 88.00% 0.100 inch. ASTM D 1003

> Yes! I am Interested

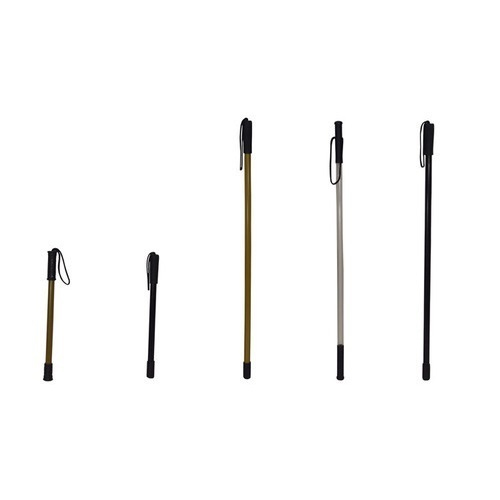

Polycarbonate Baton / Lathi

Polycarbonate Baton and Lathi
Ask for Price

DUROTUFFTM Tube/ Baton is Especially meant for the use of Police, paramilitary, allied forces and other security/detective services. These are produced in Different sizes, in Diameter, Length, Thickness and colours in Bulk quantity. Because of lightweight, durable and quite handy these are the prime choice of the user as their guard protection. These are durable because of outstanding mechanical strength with.....
Available in Sizes
Diameter Length Weight
3.5mm, 4.00mm & 5mm 50cm, 60cm, 75cm, 100cm. 150-500 gms

DUROTUFFTM Batons can be made as per client’s specification and sizes with special request and order.

Specifications
Physical Properties Value / Unit Standard
Density 1.2g/cc ASTM D792
Water Absorption 0.15% 24Hrs.@73F ASTM D 570
Water Absorption at Saturation 0.35% Equilibrium,73F ASTM D 570
Shrinkage 0.005-0.007 cm /cm Flow.0.125 inch. ASTM D 955
Melt Flow 7 g/10 min 300C/1.2kgf (o) ASTM D 1238


Mechanical Properties Value / Unit Standard
Hardness, Rockwell M. 70 ASTM D 785
Hardness, Rockwell R. 118 ASTM D 785
Tensile Strength @Break 65.5 Mpa Type 1, 2.0 in/ Min, ASTM D 638
Tensile Strength @Yield 62.1 Mpa Type 1, 2.0 in/ Min, ASTM D 638
Elongation at Break 110.00% Type 1, 2.0 in/ Min, ASTM D 638
Elongation at Yield 7.00% Type 1, 2.0 in/ Min, ASTM D 638
Flexural Modulus 2.34 Gpa 0.05 in/min, 2” span, ASTM D 790
Flexural Yield Strength 93.1 Mpa 0.05 in/min, 2” span, ASTM D 790
Fatigue Strength 6.89 Mpa Fatigue Limit, 2.5 MM Cycles, ASTM D 671
Izod Impact, Unnotched 32 J/cm 73F; ASTM D 4812
Tensile Impact Strength 546 kJ/m2 Type “S” ASTM D 1822
Falling Dart Impact 169J 73F, ASTM D 3029
Taber Abrasion, mg/1000 Cycles 10 CS-17, 1 kg; ASTM D 1044
Izod Impact, Notched 0.08 J/cm 73F; ASTM D 256


Electrical Properties Value / Unit Standard
Volume Resistivity Min 1e+017 ohm- cm ASTM D 257
Dielectric Constant 2.96 1 MHz. ASTM D 150
Dielectric Strength 15 kV/mm In ai, 125 mils, ASTM D 149
Dissipation Factor 0.009/0.01 60Hz, STM D 150/ 1 MHz; ASTM D 150
Comparative Tracking Index 250- 400 V (+/-0.125 inch), PLC Code 2 UL 746A
Hot Wire Ignition, HWI 7 – 15 sec (+/-0.125 inch), PLC Code 4, UL 746A
High Amp. Arc Ignition, HAI 60 – 120 arcs Surface (+/-0.125 inch) PLC Code 1, UL 746 A
High Voltage Arc-Tracking Rate HVTR 25.4–80mm/min (+/-0.125 inch), PLC Code 2; UL 746A


Thermal Properties Value / Unit Standard
CTE linear 68oF 68.4 um/ m-deg. C Flow-40F to 200F; ASTM E 831
Heat Capacity 1.26 J/g. deg. C ASTM C 351
Thermal Conductivity 0.19W/m-K ASTM C 177
Deflection Temperature at 0.46 Mpa (66 psi) 138 deg. C 0.250 inch, unannealed, ASTM D 648
Deflection Temperature at 1.8 Mpa (264 Psi) 132 deg. C 0.250 inch, unannealed, ASTM D 648
Vicat Softening Point 154 deg. C Rate B, ASTM D 1525
UL RTI, Electrical 130 deg. C UL 746B
UL RTI, Mechanical with Impact 130 deg. C UL 746B
UL RTI, Mechanical without impact 130 deg. C UL 746B
Flammability, UL 94 HB 0.029 in.


Thermal Properties Value / Unit Standard
Refractive Index 1.59 ASTM D 542
Haze 1.00% 0.100 inch, ASTM D 1003
Transmission, Visible 88.00% 0.100 inch. ASTM D 1003

> Yes! I am Interested

Polycarbonate Shield

Polycarbonate Shield
Ask for Price

DUROTUFFTM shield is also meant for the use of Police, paramilitary, allied forces and other security/detective services to provide safety and excellent protection to the user. These are…..

Standard data of DUROTUFFTM SHILED available
(Tolerance limit +/- 10%)
SIZE CM WEIGHT THICKNESS
Medium 80 X 45 1600-2500 gms 3-4 mm
Larg 95 X 60 2000-2800 “ 3-4 “
Extra Larg 110 X 75 2450-3250 “ 3-4 “


Specifications
Properties Value Standard
Impact Strength 850 JM ASTM D 638
Light Transmission 80%-90% ASTM-D 1003
Weight ½ times of Glass ASTM D792
Wide Service Temperature Range -40Deg.C to 120dg. C ASTM D 648
Coefficient of Thermal Expansion 00.065 mm/m dg. C ASTM E 831
Specific Gravity 1.2g/cm ASTM D792
Modulus of Elasticity 2.400 mPa ASTM D 638
Tensile Street At Break >65mPa ASTM D 638
Specific Heat 1.16J/kgk ASTM C 351
Heat Deflection Temperature 140deg. C ASTM D 648
Flexural Strength 100N/mm2 ASTM D 790
Tensile Strength >60N/mm2 ASTM D 638
Heat Conductivity 2.3-3.9W/m2dg.c ASTM C 177
Elongation At Break >100% ASTM D 638

> Yes! I am Interested

> Download Brochure

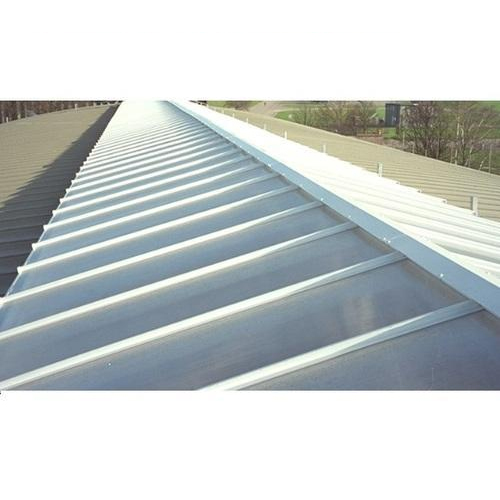

Polycarbonate Ridge

Polycarbonate Ridge
Ask for Price

DUROTUFFTM Polycarbonate ridge is made from high quality polycarbonate material, which besides providing skylight vision is high tech leak free insulated economical structure. No lock seals and fabrication is required for reducing of joints provide Long term gasket seals between penals. Because of high strength durable quality long life, these are become most reliable and the prime choice of the builders, engineers and architectures. DUROTUFFTM RIDGE are made out from best quality Polycarbonate material and contains ………

> Yes! I am Interested

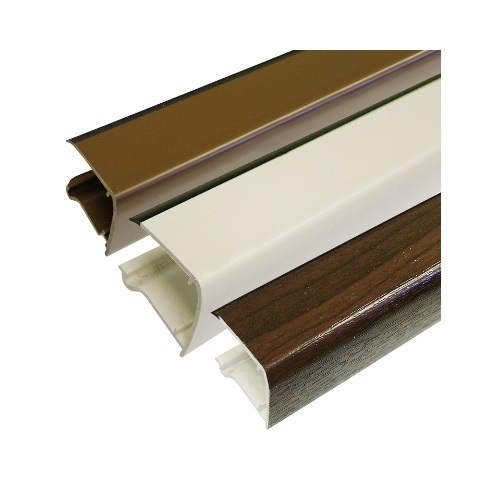

Polycarbonate Gutter

Polycarbonate Gutter
Ask for Price

DUROTUFFTM Polycarbonate Gutter is made from high quality polycarbonate Solid material, which besides providing disposal of waste roof water it is high tech leak free insulated economical structure. No lock seals and extra fabrication is required for reducing of joints. It Provides Long term gasket seals between penals. Because of high strength, durable quality and long life, DUROTUFFTM gutters are most reliable and hence are the prime choice of the builders, engineers and architectures.

DUROTUFFTM Gutter is

> Yes! I am Interested

Polycarbonate Ventilator Base Plate

Polycarbonate Ventilator Base Plate
Ask for Price

DUROTUFFTM Polycarbonate Ventilator base plates are made from high quality polycarbonate material, designed with the aid of the latest technology, These Ventilators assure ventilation of air that helps in removing foul smell and maintaining hygienic environment. It provides throughout energy free fresh air and cooling. DUROTUFFTM Polycarbonate Ventilators are more helpful in exhausting inside hot air and industrial emission without the help of exhaust fans, which save the cost of installation, and maintenance of exhaust fans. By exhausting inner dust and four Industrial smell/air these ensure the health of workers from harmful Industrial end products. DUROTUFFTM Polycarbonate Ventilators continuously work in wind motion and provides a safe, cool, healthier and controlled environment. It gives pleasant looking and enhances architectural looks

It functions & performs without any energy source and it removes inner rainy moisture lade air and provide fresh and cool air.

DUROTUFFTM Polycarbonate ventilators save operating cost because these run on wind energy and also give noise free operation. These are highly efficient and helpful in protecting the environment.

> Yes! I am Interested

> Download Brochure
