Onduvilla Roofing Tiles

Onduline Roofing Tiles
Ask for Price

Owing to the wide experience of this domain, we are instrumental in offering Onduvilla Roofing Tiles. Onduvilla corrugated tiles are designed to give roofs a pleasant look reminiscent of traditional clay tiles, while at the same time being extremely light. Onduvilla tiles have a unique colorings system, wherein each tile is different from others thereby resulting in a natural texture. Available in seven different colors.





Features
Specifications
Length 1070mm
Width 400mm
Thickness 3mm
WAVE HEIGHT 38mm
Width of Corrugation 97.3mm
Surface Area 0.43 m²
Weight/ M² (Shaded) 3kg
Weight/ M² (3d) 3.2 kg


Accessories

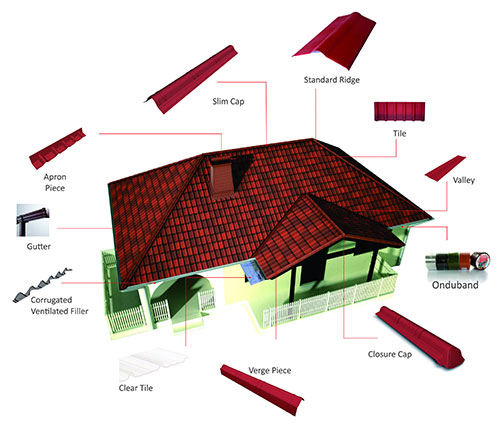

Onduline Tiles Accessories

STANDARD RIDGE Standard Ridge Flexible double wings accomodate a wide range of roof angles. 1000mm x 420mm
SLIM CAP Slim Cap Cap for ridge and hips 1060mm x 175mm
CLOSURE CAP Closure Cap Designed for the finishing of ridge and hip lines. 1060mm x 175mm
VERGE PIECE Verge Piece Designed to provide a neat aesthetics at the edge of the roof. 1000mm x 405mm
VALLEY Valley Used to collect rainwater flowing into the valley. 2000mm x 430mm
APRON PIECE Apron Piece Designed to provide water tightness and ventilation to the ridge line for roofs with a pitch upto 50°. Can also be used to seal the gap between Onduvilla and vertical wall abutment. 1020mm x 140mm
CLEAR TILE Clear Tile Transparent tile designed to bring natural light into the living space. 496mm x 400mm
SPEEDY SCREW Speedy Screw Self drilling screw for fastening of roof tile to steel/wood. 65 (+3) mm
RAIN WATER GUTTER Rain Water Gutter Troughs that collect rain running off a roof and channel it, with proper slopes, to downspouts that carry the rainwater to the ground and away from your siding, windows, doors and foundation. 3000mmx2700mm


Applications
Residential Resorts & Hotels Public Access Buildings
Enlarge ViewResidential Enlarge ViewResorts & Hotels Enlarge ViewPublic Access Buildings


> Download Brochure

  1. Technical Data Sheet - Onduvilla (Painted)
  2. Technical Data Sheet - Onduvilla (Pigmented)
  3. Technical Data Sheet - Clear Tile
  4. Technical Data Sheet - Onduvilla Ridge
  5. Onduvilla® Brochure
  6. Maintenance Instructions
  7. Onduvilla Installation Guidelines
